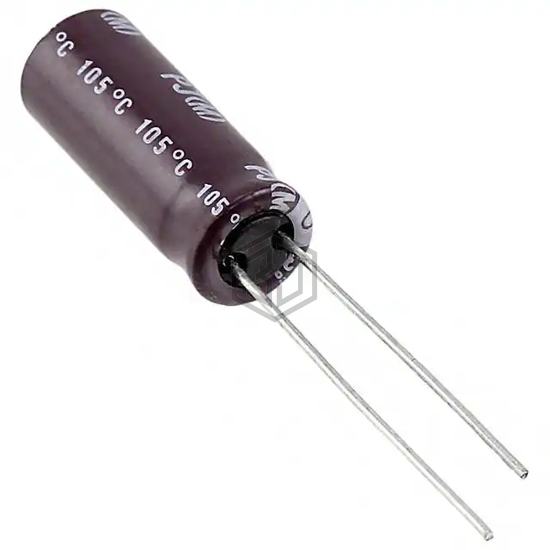

CAP ALUM 220UF 20% 35V RADIAL
UPJ1V221MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 825
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 580 mA @ 120 Hz |
| Ripple Current @ High Frequency | 795 mA @ 10 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1V221MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41896W7227M | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 35V RADIAL | 100% | View |
| UPX1E221MHD1TO | Nichicon | CAP ALUM 220UF 20% 25V RADIAL | 86% | View |
| MAL213650221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V RADIAL | 84% | View |
| EEU-FC1J221X | Panasonic Electronic Components | CAP ALUM 220UF 20% 63V RADIAL | 81% | View |
| 678D227M050DM4J | Vishay Sprague | CAP ALUM 220UF 20% 50V RADIAL | 78% | View |
| ECA-2AHG221B | Panasonic Electronic Components | CAP ALUM 220UF 20% 100V RADIAL | 68% | View |
