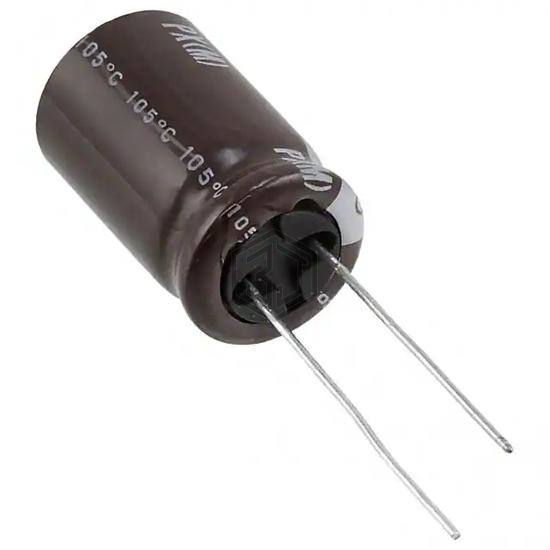

CAP ALUM 220UF 20% 25V RADIAL
UPX1E221MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 635
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 630 mA @ 120 Hz |
| Ripple Current @ High Frequency | 840 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPX1E221MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C5227M006 | EPCOS - TDK Electronics | CAP ALUM 25V POLAR | 89% | View |
| ELXV350ETD221MJ16S | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 79% | View |
| EEU-FC1J221X | Panasonic Electronic Components | CAP ALUM 220UF 20% 63V RADIAL | 76% | View |
| MAL213650221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V RADIAL | 73% | View |
| ECA-2AHG221B | Panasonic Electronic Components | CAP ALUM 220UF 20% 100V RADIAL | 65% | View |
| B41890A6227M | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 50V RADIAL | 60% | View |
Submit your RFQ for UPX1E221MHD1TO and get a quote within 24 hours.
