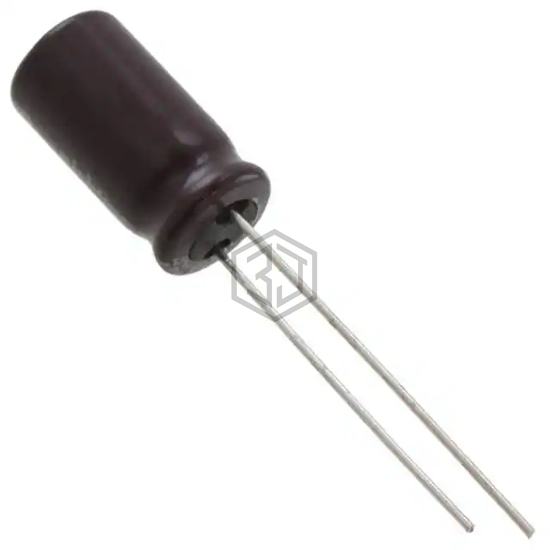

CAP ALUM 47UF 20% 80V RADIAL
UPJ1K470MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 1,942
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 295 mA @ 10 kHz |
| Impedance | 390 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1K470MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ2A470MPD | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 89% | View |
| B41888G8476M008 | EPCOS - TDK Electronics | CAP ALUM 63V POLAR | 89% | View |
| MAL214068479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V RADIAL | 85% | View |
| UBX1K470MPL1TD | Nichicon | CAP ALUM 47UF 20% 80V RADIAL | 74% | View |
| EY1J470MP51007E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 59% | View |
| SEK470M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for UPJ1K470MPD and get a quote within 24 hours.
