CAP ALUM 180UF 20% 80V RADIAL

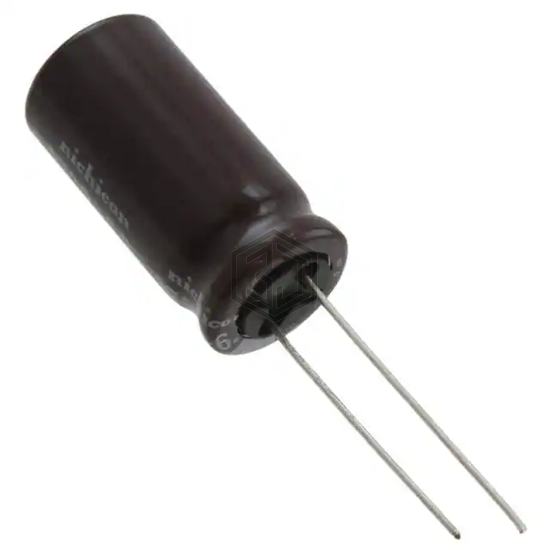

UPJ1K181MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 2,003
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 520 mA @ 120 Hz |
| Ripple Current @ High Frequency | 734 mA @ 10 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1K181MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1K181MHD6TN | Nichicon | CAP ALUM 180UF 20% 80V RADIAL | 96% | View |
| UPW1J181MPD1AL | Nichicon | CAP ALUM 63V POLAR | 86% | View |
| ELXZ630ELL181MJ20S | United Chemi-Con | CAP ALUM 180UF 20% 63V RADIAL | 81% | View |
| 187KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 180UF 20% 50V RADIAL | 80% | View |
| 187KXM100MQU | Cornell Dubilier / Illinois Capacitor | CAP ALUM 180UF 20% 100V RADIAL | 72% | View |
| ELXY250ELL181MJC5S | United Chemi-Con | CAP ALUM 180UF 20% 25V RADIAL | 62% | View |
Submit your RFQ for UPJ1K181MHD and get a quote within 24 hours.
