CAP ALUM 560UF 20% 50V RADIAL

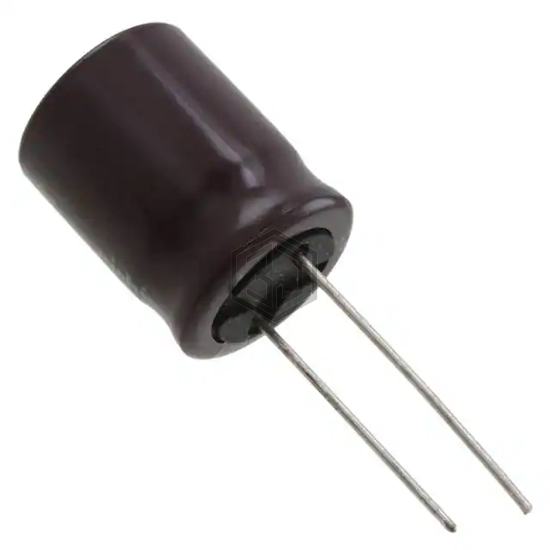

UPJ1H561MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,907
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.26 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.55 A @ 10 kHz |
| Impedance | 53 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1H561MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D567G050GL2 | Vishay Sprague | CAP ALUM 560UF 50V AXIAL | 100% | View |
| 567KXM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 35V RADIAL | 78% | View |
| 860160578027 | Würth Elektronik | CAP ALUM 560UF 20% 35V RADIAL | 76% | View |
| ELXV101ELL561MM35S | United Chemi-Con | CAP ALUM 560UF 20% 100V RADIAL | 72% | View |
| UPA1E561MPD6TD | Nichicon | CAP ALUM 560UF 20% 25V RADIAL | 70% | View |
| ELXY250ELL561MJ25S | United Chemi-Con | CAP ALUM 560UF 20% 25V RADIAL | 63% | View |
Submit your RFQ for UPJ1H561MHD6 and get a quote within 24 hours.
