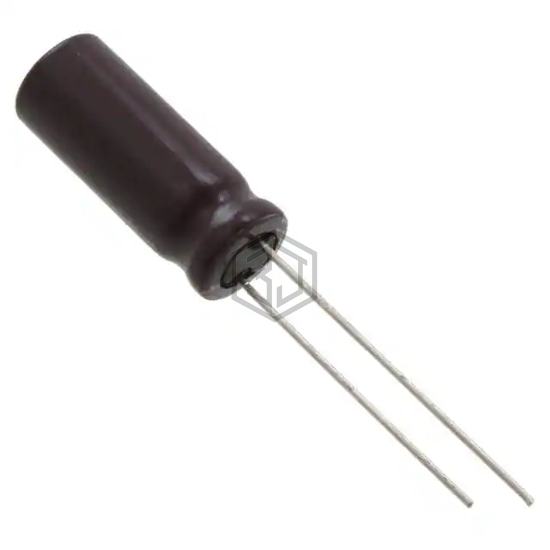

CAP ALUM 120UF 20% 50V RADIAL
UPJ1H121MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 9,925
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 455 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 160 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1H121MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D127F060DS3J | Vishay Sprague | CAP ALUM 120UF 60V RADIAL | 88% | View |
| 610D127F030DL2 | Vishay Sprague | CAP ALUM 120UF 30V AXIAL | 67% | View |
| ELXV350ETC121MH12S | United Chemi-Con | CAP ALUM 120UF 20% 35V RADIAL | 57% | View |
| 601D127F100FJ1 | Vishay Sprague | CAP ALUM 120UF 100V AXIAL | 56% | View |
| 672D127H100ET5J | Vishay Sprague | CAP ALUM 120UF 100V RADIAL | 56% | View |
| B41890A5127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UPJ1H121MPD1TA and get a quote within 24 hours.
