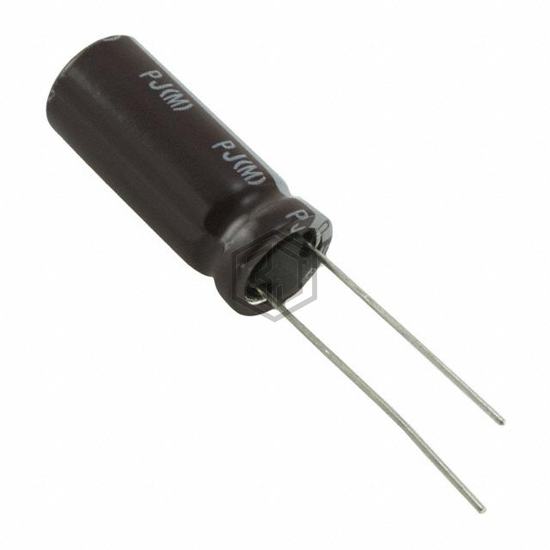

CAP ALUM 56UF 20% 16V RADIAL
UPJ1C560MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,137
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 105 mA @ 120 Hz |
| Ripple Current @ High Frequency | 175 mA @ 10 kHz |
| Impedance | 1.1 Ohms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1C560MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1C560B | Panasonic Electronic Components | CAP ALUM 56UF 20% 16V RADIAL | 94% | View |
| 672D566H020CC5C | Vishay Sprague | CAP ALUM 56UF 20V RADIAL | 86% | View |
| ELXV350ELL560MFB5D | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 60% | View |
| ELXY350ETD560MFB5D | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 58% | View |
| 601D566F200FL3 | Vishay Sprague | CAP ALUM 56UF 200V AXIAL | 56% | View |
| UPW1V560MDD | Nichicon | CAP ALUM 56UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for UPJ1C560MDD1TA and get a quote within 24 hours.
