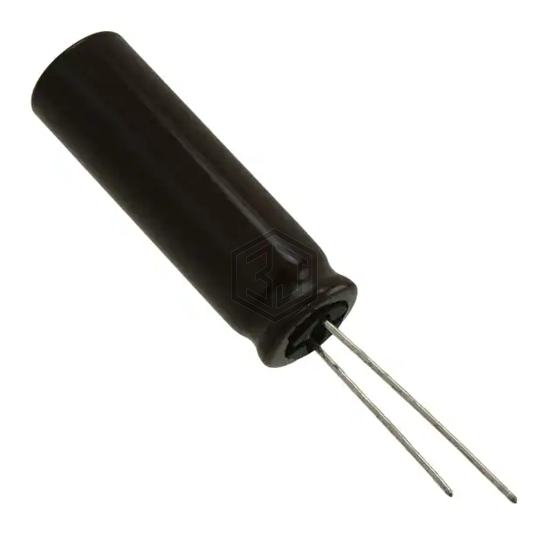

CAP ALUM 3900UF 20% 10V RADIAL
UPJ1A392MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,872
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.36 A @ 10 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1A392MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1A392MHD6TN | Nichicon | CAP ALUM 3900UF 20% 10V RADIAL | 96% | View |
| B41858D3398M9 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 10V RADIAL | 96% | View |
| MAL213664392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 10V RADIAL | 94% | View |
| B41888D4398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 16V RADIAL | 73% | View |
| B41858C5398M000 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 25V RADIAL | 59% | View |
| B41896C5398M002 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UPJ1A392MHD and get a quote within 24 hours.
