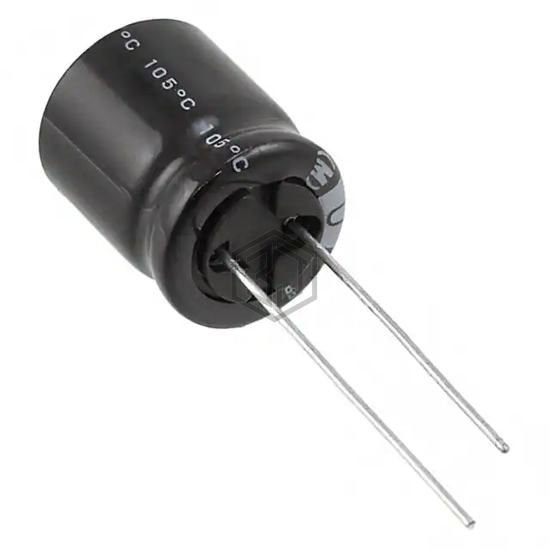

CAP ALUM 3900UF 20% 10V RADIAL
UPW1A392MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,668
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.879 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1A392MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213664392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 10V RADIAL | 97% | View |
| B41858D3398M9 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 10V RADIAL | 97% | View |
| UPA0J392MHD1TO | Nichicon | CAP ALUM 3900UF 20% 6.3V RADIAL | 83% | View |
| B41888D4398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 16V RADIAL | 72% | View |
| B41858C5398M000 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 25V RADIAL | 58% | View |
| B41858C5398M9 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 25V RADIAL | 58% | View |
Submit your RFQ for UPW1A392MHD6TN and get a quote within 24 hours.
