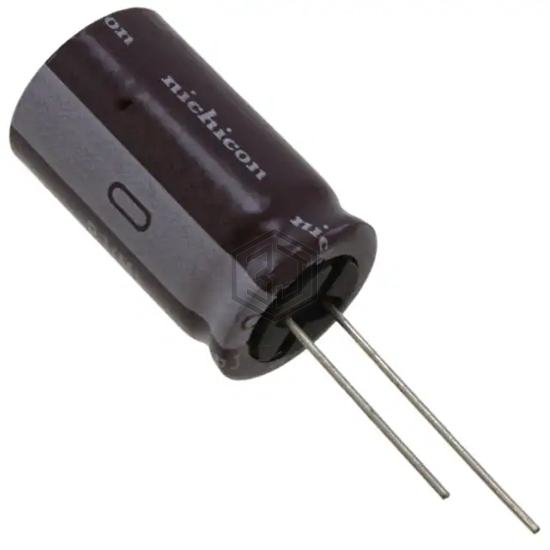

CAP ALUM 8200UF 20% 6.3V RADIAL
UPJ0J822MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,151
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.29 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.55 A @ 10 kHz |
| Impedance | 27 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ0J822MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA0J822MHD | Nichicon | CAP ALUM 8200UF 20% 6.3V RADIAL | 94% | View |
| EEU-FK0J822 | Panasonic Electronic Components | CAP ALUM 8200UF 20% 6.3V RAD TH | 93% | View |
| EEU-FK1A822S | Panasonic Electronic Components | CAP ALUM 8200UF 20% 10V RAD TH | 80% | View |
| UPA1A822MHD6 | Nichicon | CAP ALUM 8200UF 20% 10V RADIAL | 79% | View |
| B41858C3828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 10V RADIAL | 71% | View |
| MAL225055822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 16V RADIAL | 67% | View |
Submit your RFQ for UPJ0J822MHD and get a quote within 24 hours.
