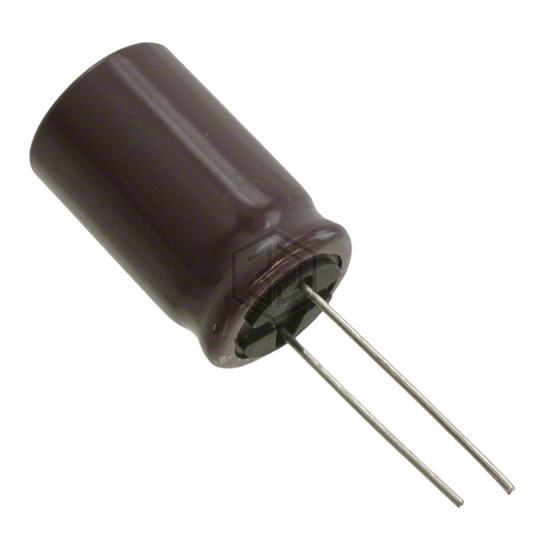

CAP ALUM 22UF 20% 450V RADIAL
UPB2W220MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 4,528
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 275 mA @ 120 Hz |
| Ripple Current @ High Frequency | 550 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2W220MHD1TN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860241378003 | Würth Elektronik | CAP ALUM 22UF 20% 400V RADIAL | 96% | View |
| EKXJ421ELL220MK20S | United Chemi-Con | CAP ALUM 22UF 20% 420V RADIAL | 91% | View |
| 400CFX22MEFCG412.5X25 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL | 85% | View |
| MAL214262295E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 350V RADIAL | 81% | View |
| MAL215236229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 400V RADIAL | 75% | View |
| EEU-ED2D220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 200V RADIAL | 74% | View |
Submit your RFQ for UPB2W220MHD1TN and get a quote within 24 hours.
