CAP ALUM 390UF 20% 250V RADIAL

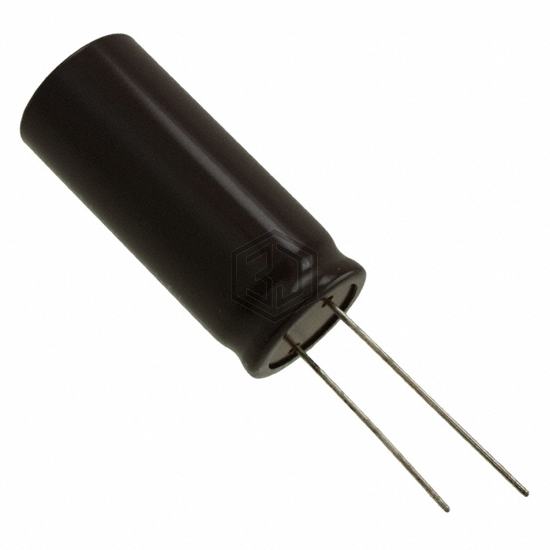

UPB2E391MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 2,750
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2E391MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGX2E391MELA30 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 93% | View |
| EKXJ221ELL391MM40S | United Chemi-Con | CAP ALUM 390UF 20% 220V RADIAL | 78% | View |
| EKXJ221ELL391ML50S | United Chemi-Con | CAP ALUM 390UF 20% 220V RADIAL | 77% | View |
| LGNW6391MELC35 | Nichicon | CAP ALUM 390UF 20% 420V SNAP | 76% | View |
| 397LMX400M2DG | Cornell Dubilier / Illinois Capacitor | CAP ALUM 390UF 20% 400V SNAP | 74% | View |
| HU2G391MCYS6WPEC | AIC tech Inc. | CAP ALUM 390UF 20% 400V SNAP | 70% | View |
Submit your RFQ for UPB2E391MRD and get a quote within 24 hours.
