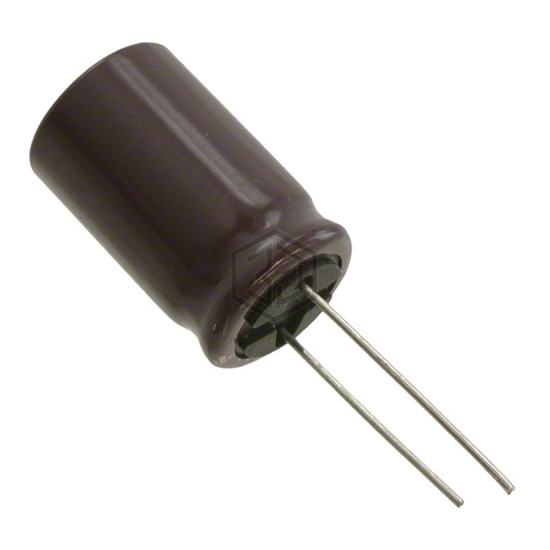

CAP ALUM 100UF 20% 160V RADIAL
UPB2C101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 4,308
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2C101MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS2C101MHD | Nichicon | CAP ALUM 100UF 20% 160V RADIAL | 85% | View |
| ESH107M160AL4AA | KEMET | CAP ALUM 100UF 20% 160V RADIAL | 75% | View |
| B43255A4107M | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 350V SNAP | 71% | View |
| EKMH401VNN101MR20W | United Chemi-Con | CAP ALUM 100UF 20% 400V SNAP | 69% | View |
| B43504E107M80 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 420V SNAP | 63% | View |
| B43504C5107M82 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 62% | View |
Submit your RFQ for UPB2C101MHD and get a quote within 24 hours.
