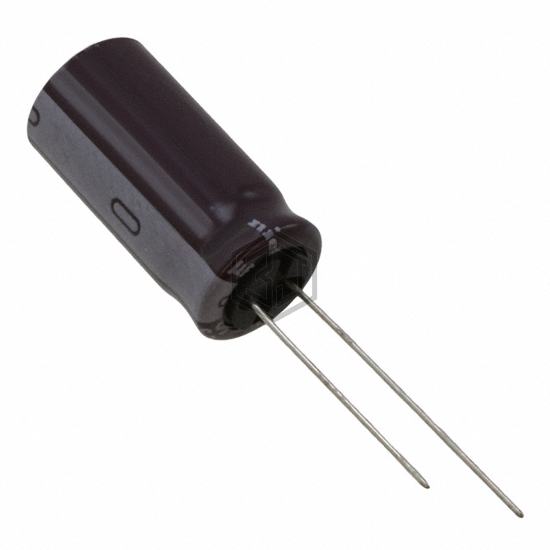

CAP ALUM 100UF 20% 160V RADIAL
UCS2C101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 7,217
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 710 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.42 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ2D101MHD1TN | Nichicon | CAP ALUM 100UF 20% 200V RADIAL | 74% | View |
| EKXJ351ELL101MK50S | United Chemi-Con | CAP ALUM 100UF 20% 350V RADIAL | 72% | View |
| 100ZLH100MEFC10X20 | Rubycon | CAP ALUM 100UF 20% 100V RADIAL | 71% | View |
| B43504C5107M82 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 70% | View |
| B43508B5107M60 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 70% | View |
| B43504E107M80 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 420V SNAP | 69% | View |
Submit your RFQ for UCS2C101MHD and get a quote within 24 hours.
