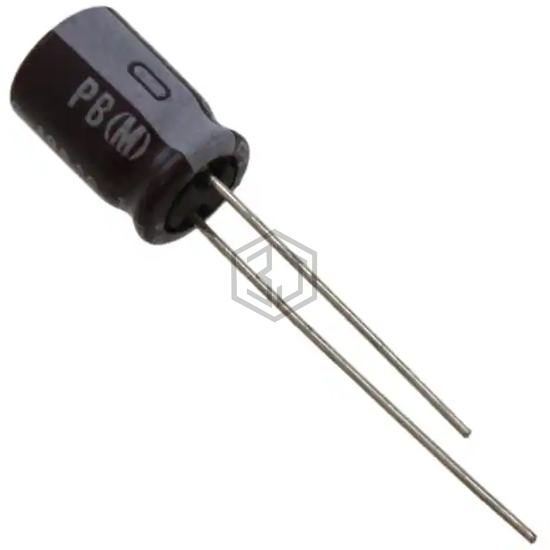

CAP ALUM 330UF 20% 10V RADIAL
UPB1A331MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,541
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 195 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1A331MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG6R3ELL331MF11D | United Chemi-Con | CAP ALUM 330UF 20% 6.3V RADIAL | 71% | View |
| 16YXS330MEFC6.3X11 | Rubycon | CAP ALUM 330UF 20% 16V RADIAL | 67% | View |
| MAL212635331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V AXIAL | 67% | View |
| UBW1A331MPD | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 56% | View |
| MAL216061331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 56% | View |
| 16YXF330MEFCCR8X11.5 | Rubycon | CAP ALUM 330UF 20% 16V RADIAL | 54% | View |
