Cornell Dubilier Electronics (CDE)

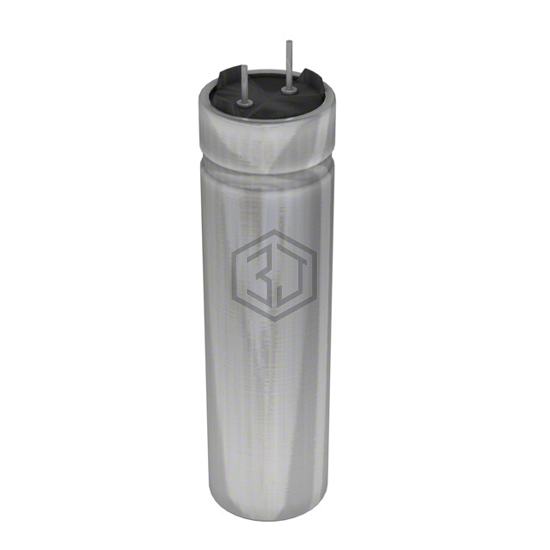

CAP ALUM 3300UF 40V RADIAL
VPR332U040N3L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 40V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can.
In Stock: 2,007
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 14mOhm @ 10kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 6.437 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.402" (10.20mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 3.626" (92.10mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214660332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 91% | View |
| MAL215050332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 91% | View |
| B41605A338M2 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 55V SNAP | 84% | View |
| MAL213634332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V RADIAL | 56% | View |
| 338RZM016M1625 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 16V RADIAL | 56% | View |
| UPA1E332MHD1TN | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 53% | View |
