CAP ALUM 2200UF 20% 25V RADIAL

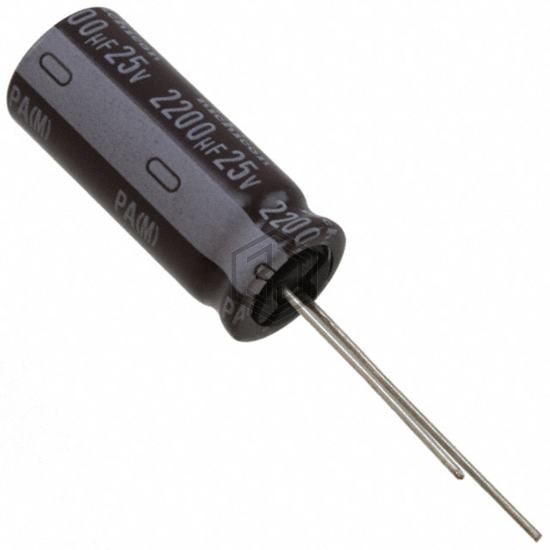

UPA1E222MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,438
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.312 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.72 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1E222 | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V RADIAL | 93% | View |
| UPJ1V222MHD6 | Nichicon | CAP ALUM 2200UF 20% 35V RADIAL | 83% | View |
| MAL214056222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V RADIAL | 81% | View |
| EEU-FC1H222E | Panasonic Electronic Components | CAP ALUM 2200UF 20% 50V RADIAL | 75% | View |
| RJA222M1HBK-1636S | SURGE | CAP ALUM 2200UF 20% 50V RADIAL | 57% | View |
| UPA0J222MPD3 | Nichicon | CAP ALUM 2200UF 20% 6.3V RADIAL | 54% | View |
Submit your RFQ for UPA1E222MHD and get a quote within 24 hours.
