Panasonic Electronic Components

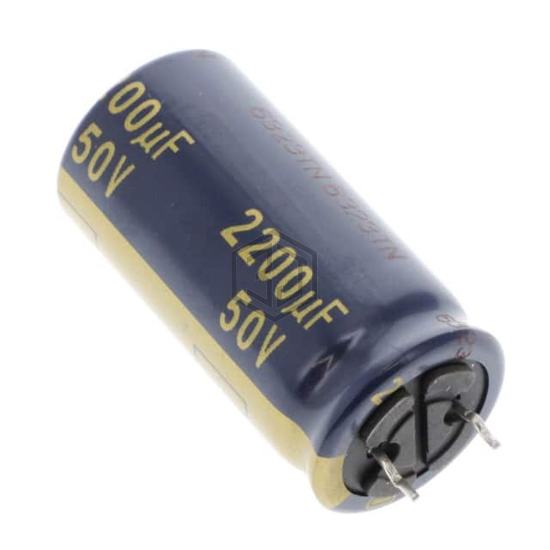

CAP ALUM 2200UF 20% 50V RADIAL
EEU-FC1H222E is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 7,056
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.48 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.1 A @ 100 kHz |
| Impedance | 23 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888C6228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 50V RADIAL | 92% | View |
| RJA222M1HBK-1636S | SURGE | CAP ALUM 2200UF 20% 50V RADIAL | 83% | View |
| B41896C7228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 35V RADIAL | 80% | View |
| RXK222M1EBK-1625S | SURGE | CAP ALUM 2200UF 20% 25V RADIAL | 69% | View |
| 860080278020 | Würth Elektronik | CAP ALUM 2200UF 20% 10V RADIAL | 68% | View |
| 860160480034 | Würth Elektronik | CAP ALUM 2200UF 20% 25V RADIAL | 60% | View |
