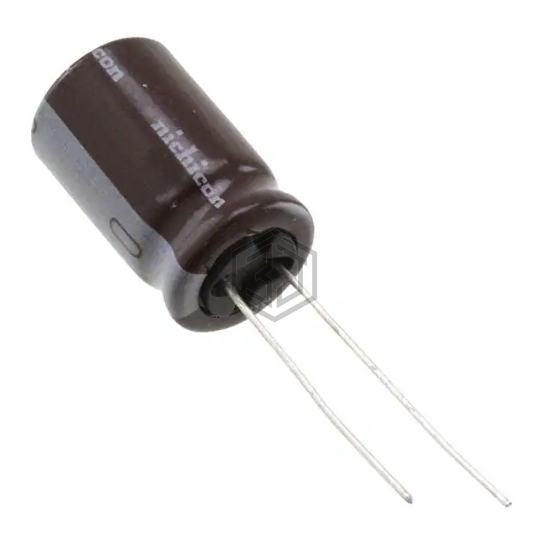

CAP ALUM 2200UF 20% 16V RADIAL
UPA1C222MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 643
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.607 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213666222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V RADIAL | 82% | View |
| MAL213661222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 50V RADIAL | 75% | View |
| MAL211946222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 25V AXIAL | 66% | View |
| 601D228F025FP1 | Vishay Sprague | CAP ALUM 2200UF 25V AXIAL | 62% | View |
| MAL211816222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V AXIAL | 61% | View |
| MAL215030222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 61% | View |
Submit your RFQ for UPA1C222MHD1TO and get a quote within 24 hours.
