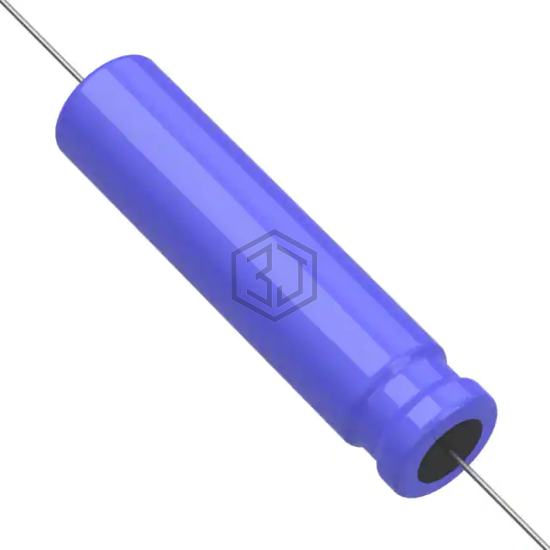

CAP ALUM 2200UF 25V AXIAL
601D228F025FP1 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 2200UF 25V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Axial, Can.
In Stock: 6,628
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 96mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.68 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.082 A @ 1 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.625" Dia x 2.625" L (15.88mm x 66.68mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW222M1VBK-1825S | SURGE | CAP ALUM 2200UF 20% 35V RADIAL | 82% | View |
| MAL211946222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 25V AXIAL | 82% | View |
| 860080580027 | Würth Elektronik | CAP ALUM 2200UF 20% 35V RADIAL | 80% | View |
| MAL215030222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 80% | View |
| MAL211816222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V AXIAL | 76% | View |
| B41692B7228Q001 | EPCOS - TDK Electronics | CAP ALUM 2200UF 40V AXIAL | 66% | View |
Submit your RFQ for 601D228F025FP1 and get a quote within 24 hours.
