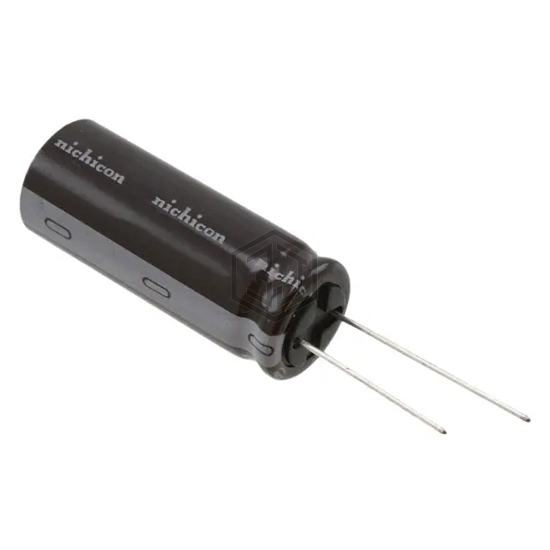

CAP ALUM 8200UF 20% 10V RADIAL
UPM1A822MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,669
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.79 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.11 A @ 10 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A822MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1A822MHD6 | Nichicon | CAP ALUM 8200UF 20% 10V RADIAL | 98% | View |
| LXZ10VB822M18X30LL | United Chemi-Con | CAP ALUM 8200UF 20% 10V RADIAL | 98% | View |
| EEU-FK1A822S | Panasonic Electronic Components | CAP ALUM 8200UF 20% 10V RAD TH | 93% | View |
| MAL225055822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 16V RADIAL | 84% | View |
| UPA0J822MHD | Nichicon | CAP ALUM 8200UF 20% 6.3V RADIAL | 82% | View |
| EEU-FK0J822S | Panasonic Electronic Components | CAP ALUM 8200UF 20% 6.3V RAD TH | 75% | View |
Submit your RFQ for UPM1A822MHD and get a quote within 24 hours.
