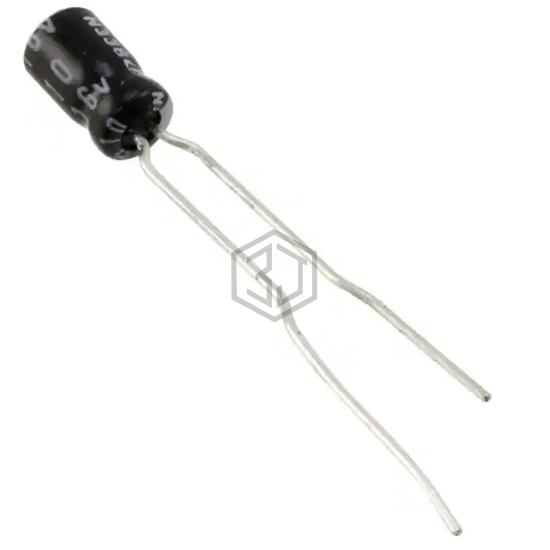

CAP ALUM 2.2UF 20% 35V RADIAL
UMT1V2R2MCD2TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,782
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 11.25 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.039" (1.00mm) |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1V2R2MCD2TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212360228 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 35V AXIAL | 91% | View |
| MAL212320228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 35V AXIAL | 91% | View |
| MAL212327228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 40V AXIAL | 82% | View |
| MAL212387228 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 40V AXIAL | 82% | View |
| UMT1H2R2MCD2 | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 80% | View |
| SEK2R2M050ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 2.2UF 20% 50V RADIAL | 77% | View |
Submit your RFQ for UMT1V2R2MCD2TP and get a quote within 24 hours.
