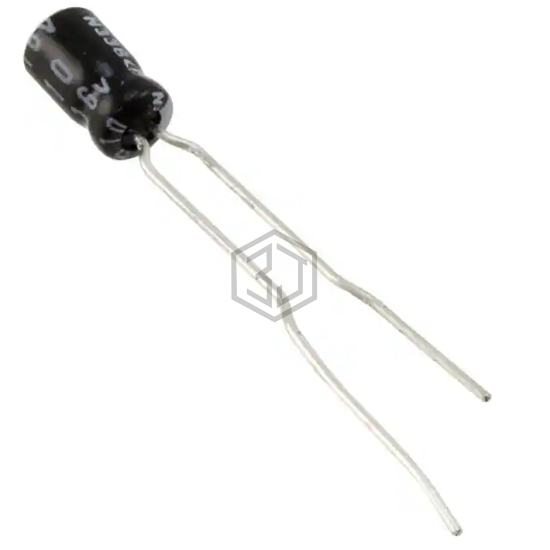

CAP ALUM 2.2UF 20% 50V RADIAL
UMT1H2R2MCD2 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,126
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9 mA @ 120 Hz |
| Ripple Current @ High Frequency | 13.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.039" (1.00mm) |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1H2R2MCD2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS1H2R2MDD1TD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 73% | View |
| EEA-GA1H2R2H | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V RADIAL | 66% | View |
| EEA-GA1H2R2 | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V RADIAL | 66% | View |
| B41896C6225M006 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 64% | View |
| ECA-1HHG2R2 | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V RADIAL | 60% | View |
| EKMG500EC32R2ME11D | United Chemi-Con | CAP ALUM 2.2UF 20% 50V RADIAL | 55% | View |
Submit your RFQ for UMT1H2R2MCD2 and get a quote within 24 hours.
