CAP ALUM 33UF 20% 6.3V RADIAL

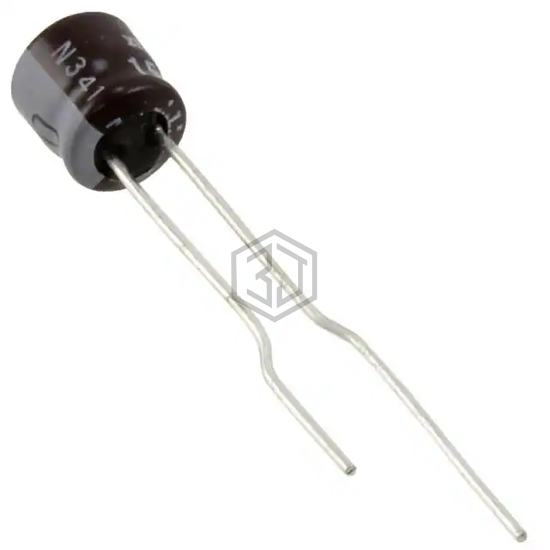

UMF0J330MDD1TE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,742
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 2.6 Ohms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMF0J330MDD1TE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMF1A330MDD1TP | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 78% | View |
| UMT0G330MDD1TP | Nichicon | CAP ALUM 33UF 20% 4V RADIAL | 71% | View |
| UKT1A330MDD1TD | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 70% | View |
| USF1A330MDD1TP | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 68% | View |
| UBX1K330MPL | Nichicon | CAP ALUM 33UF 20% 80V RADIAL | 56% | View |
| UBX1K330MPL1TD | Nichicon | CAP ALUM 33UF 20% 80V RADIAL | 56% | View |
