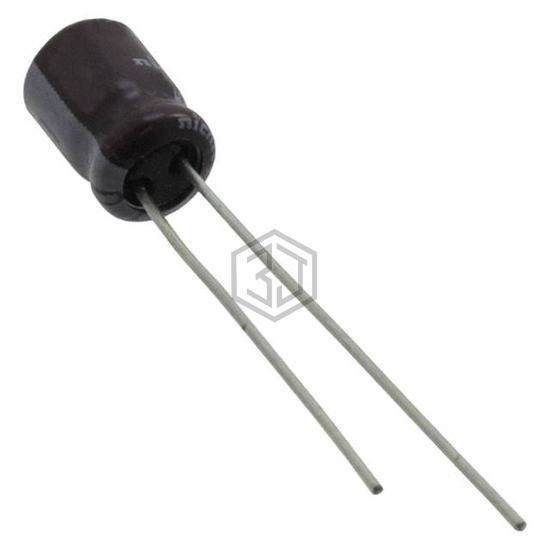

CAP ALUM 33UF 20% 10V RADIAL
USF1A330MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,485
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110 mA @ 100 kHz |
| Impedance | 1.7 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
USF1A330MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKT1A330MDD1TD | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 97% | View |
| UMF1A330MDD1TP | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 85% | View |
| UMF1C330MDD1TP | Nichicon | CAP ALUM 33UF 20% 16V RADIAL | 83% | View |
| URZ1C330MDD1TD | Nichicon | CAP ALUM 33UF 20% 16V RADIAL | 82% | View |
| URZ1C330MDD | Nichicon | CAP ALUM 33UF 20% 16V RADIAL | 82% | View |
| UPS1A330MDD1TA | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 76% | View |
