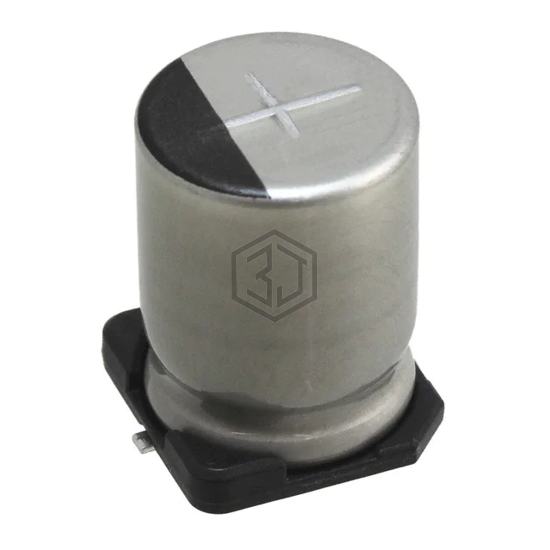

CAP ALUM 7.5UF 20% 450V SMD
ULT2W7R5MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 7.5UF 20% 450V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 450 V, package / case Radial, Can - SMD.
In Stock: 5,035
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 7.5 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ULH2G7R5MNL1GS | Nichicon | CAP ALUM 7.5UF 20% 400V SMD | 88% | View |
| AEH10136R8M400R | KYOCERA AVX | ALUMINUM CAP | 77% | View |
| ULH2E7R5MNL1GS | Nichicon | CAP ALUM 7.5UF 20% 250V SMD | 66% | View |
| ULT2E8R2MNL1GS | Nichicon | CAP ALUM 8.2UF 20% 250V SMD | 62% | View |
| EMVH401GDA6R8MLH0S | United Chemi-Con | CAP ALUM 6.8UF 20% 400V SMD | 60% | View |
| UUB2D6R8MNL1GS | Nichicon | CAP ALUM 6.8UF 20% 200V SMD | 54% | View |
Submit your RFQ for ULT2W7R5MNL1GS and get a quote within 24 hours.
