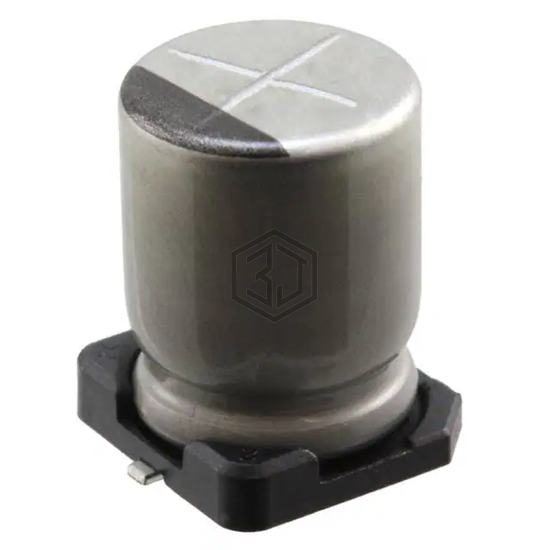

CAP ALUM 7.5UF 20% 250V SMD
ULH2E7R5MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 7.5UF 20% 250V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 250 V, package / case Radial, Can - SMD.
In Stock: 3,371
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 7.5 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 45 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ULT2E8R2MNL1GS | Nichicon | CAP ALUM 8.2UF 20% 250V SMD | 97% | View |
| ULT2W7R5MNL1GS | Nichicon | CAP ALUM 7.5UF 20% 450V SMD | 66% | View |
| UUB2C6R8MNL1GS | Nichicon | CAP ALUM 6.8UF 20% 160V SMD | 66% | View |
| EMVH500ADA100MF60G | United Chemi-Con | CAP ALUM 10UF 20% 50V SMD | 62% | View |
| ULT2G6R8MNL1GS | Nichicon | CAP ALUM 6.8UF 20% 400V SMD | 62% | View |
| ULH2G7R5MNL1GS | Nichicon | CAP ALUM 7.5UF 20% 400V SMD | 61% | View |
Submit your RFQ for ULH2E7R5MNL1GS and get a quote within 24 hours.
