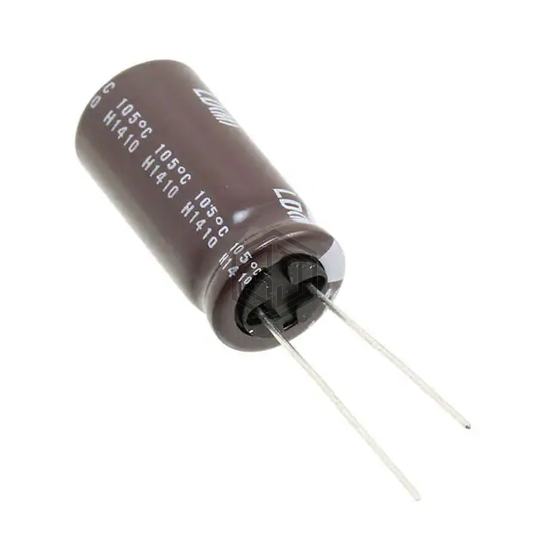

CAP ALUM 22UF 20% 450V RADIAL
ULD2W220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 8,448
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 240 mA @ 120 Hz |
| Ripple Current @ High Frequency | 456 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ULD2W220MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400TXW22MEFR10X25 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL TH | 91% | View |
| 400TXW22MEFR8X40 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL TH | 91% | View |
| UCY2W220MHD1TO | Nichicon | CAP ALUM 22UF 20% 450V RADIAL | 88% | View |
| 350BXW22MEFR10X20 | Rubycon | CAP ALUM 22UF 20% 350V RADIAL | 86% | View |
| URZ2G220MHD6 | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 84% | View |
| 517D226M250DK6AE3 | Vishay Sprague | CAP ALUM 22UF 20% 250V RADIAL | 57% | View |
Submit your RFQ for ULD2W220MHD and get a quote within 24 hours.
