CAP ALUM 22UF 20% 400V RADIAL TH

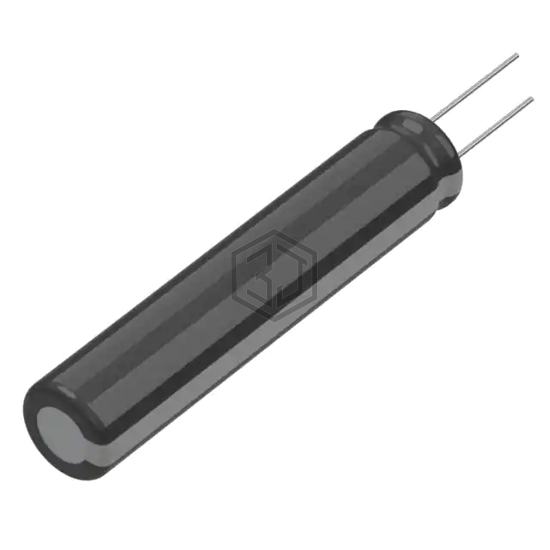

400TXW22MEFR8X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 400V RADIAL TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 2,660
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 390 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 1.673" (42.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400TXW22MEFC8X40 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL TH | 100% | View |
| 400TXW22MEFR10X25 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL TH | 96% | View |
| 350BXW22MEFR10X20 | Rubycon | CAP ALUM 22UF 20% 350V RADIAL | 84% | View |
| UCY2W220MHD1TO | Nichicon | CAP ALUM 22UF 20% 450V RADIAL | 83% | View |
| EGXE101ELL220MJC5S | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 67% | View |
| EEU-FR1H220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 53% | View |
