CAP ALUM 15UF 20% 450V RADIAL

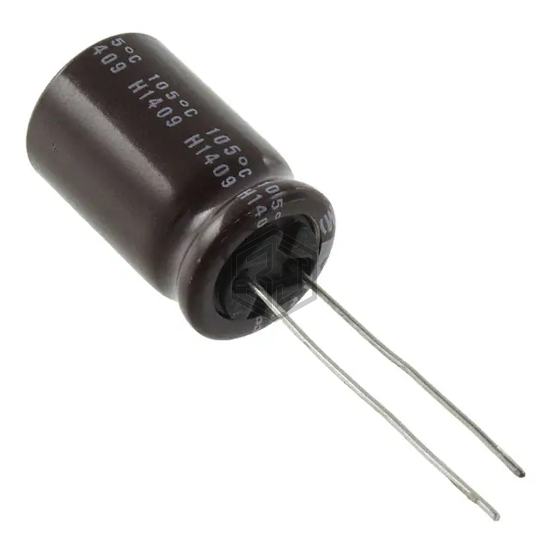

ULD2W150MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 8,988
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 252 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ULD2W150MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2H150MHD3TN | Nichicon | CAP ALUM 15UF 20% 500V RADIAL | 73% | View |
| EY2A150MP56311EU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 64% | View |
| 160LLE15MEFC10X9 | Rubycon | CAP ALUM 15UF 20% 160V RADIAL | 62% | View |
| 860080773002 | Würth Elektronik | CAP ALUM 15UF 20% 63V RADIAL | 58% | View |
| 156KXM063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 15UF 20% 63V RADIAL | 56% | View |
| 160YXF15KEFCT810X12.5 | Rubycon | CAP ALUM 15UF 10% 160V RADIAL | 56% | View |
Submit your RFQ for ULD2W150MHD1TO and get a quote within 24 hours.
