CAP ALUM 15UF 20% 500V RADIAL

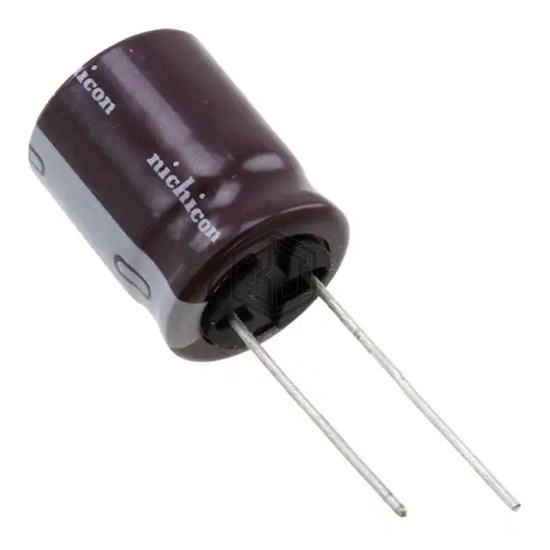

UCY2H150MHD3TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15UF 20% 500V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can.
In Stock: 8,240
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 440 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXN451ELL150MJ16S | Chemi-Con | CAP ALUM 15UF 20% 450V RADIAL TH | 91% | View |
| 400AX15MEFC8X20 | Rubycon | CAP ALUM 15UF 20% 400V RADIAL | 61% | View |
| 160YXF15KEFCT810X12.5 | Rubycon | CAP ALUM 15UF 10% 160V RADIAL | 56% | View |
| 30D156M100CC2A | Vishay Sprague | CAP ALUM 15UF 20% 100V AXIAL | 56% | View |
| 160YXF15KEFCT78X11.5 | Rubycon | CAP ALUM 15UF 10% 160V RADIAL | 56% | View |
| TE1129 | Vishay Sprague | CAP ALUM 15UF 12V AXIAL | 56% | View |
Submit your RFQ for UCY2H150MHD3TN and get a quote within 24 hours.
