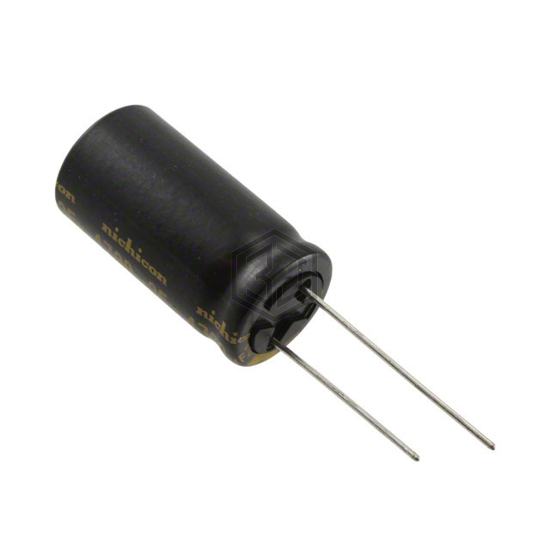

CAP ALUM 4700UF 20% 25V RADIAL
UKW1E472MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,580
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.36 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.714 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKW1E472MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16YXH4700MEFC18X25 | Rubycon | CAP ALUM 4700UF 20% 16V RAD TH | 81% | View |
| UBT1A472MHD | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 73% | View |
| ESMH500VSN472MR25S | United Chemi-Con | CAP ALUM 4700UF 20% 50V SNAP | 72% | View |
| B41821A3478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 10V RADIAL | 61% | View |
| ESMH800VSN472MQ50S | United Chemi-Con | CAP ALUM 4700UF 20% 80V SNAP | 52% | View |
| SEK472M6R3ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 6.3V RADIAL | 52% | View |
