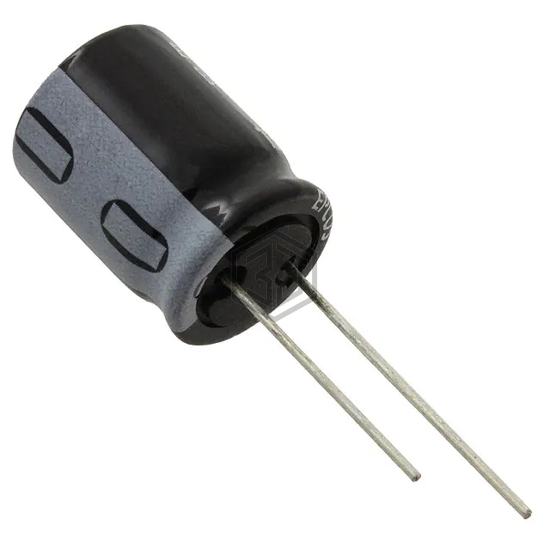

CAP ALUM 4700UF 20% 10V RADIAL
B41821A3478M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 4700UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 110mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT1A472MHD | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 98% | View |
| SEK472M6R3ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 6.3V RADIAL | 73% | View |
| 16YXH4700MEFC18X25 | Rubycon | CAP ALUM 4700UF 20% 16V RAD TH | 72% | View |
| EKMH350VSN472MP30U | United Chemi-Con | CAP ALUM 4700UF 20% 35V SNAP | 71% | View |
| ESMH500VSN472MR25S | United Chemi-Con | CAP ALUM 4700UF 20% 50V SNAP | 55% | View |
| MAL215638472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 63V SNAP | 50% | View |
Submit your RFQ for B41821A3478M000 and get a quote within 24 hours.
