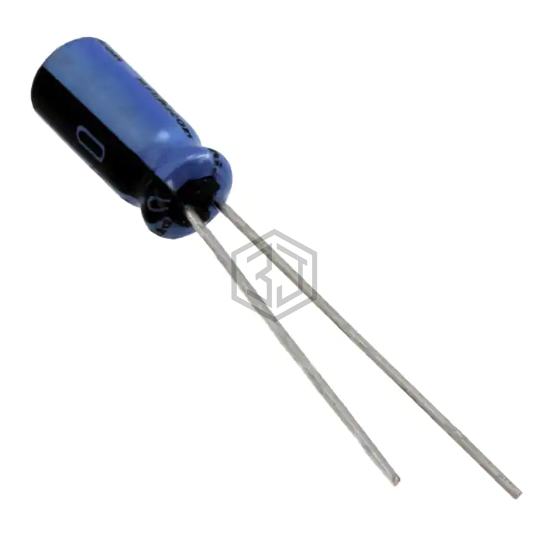

CAP ALUM 33UF 20% 10V RADIAL
UKT1A330MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,451
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 58 mA @ 120 Hz |
| Ripple Current @ High Frequency | 116 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKT1A330MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1A330MDD | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 100% | View |
| UPW1A330MDH | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 88% | View |
| UST1V330MDD1TA | Nichicon | CAP ALUM 33UF 20% 35V RADIAL | 72% | View |
| UBW1J330MPD | Nichicon | CAP ALUM 33UF 20% 63V RADIAL | 67% | View |
| EEU-HD1H330B | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 58% | View |
| EEU-FC1V330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 35V RADIAL | 53% | View |
Submit your RFQ for UKT1A330MDD1TA and get a quote within 24 hours.
