CAP ALUM 33UF 20% 35V RADIAL

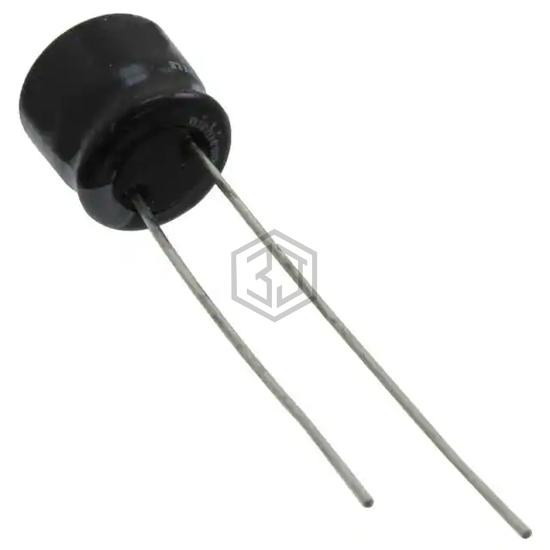

UST1V330MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,792
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 72 mA @ 120 Hz |
| Ripple Current @ High Frequency | 108 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1V330MGD | Nichicon | CAP ALUM 33UF 20% 35V RADIAL | 100% | View |
| UST1E330MDD1TE | Nichicon | CAP ALUM 33UF 20% 25V RADIAL | 83% | View |
| UMF1E330MDD1TP | Nichicon | CAP ALUM 33UF 20% 25V RADIAL | 83% | View |
| EEU-FC1V330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 35V RADIAL | 77% | View |
| UBW1J330MPD | Nichicon | CAP ALUM 33UF 20% 63V RADIAL | 73% | View |
| EEU-HD1H330B | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 72% | View |
