CAP ALUM 1000UF 20% 10V RADIAL

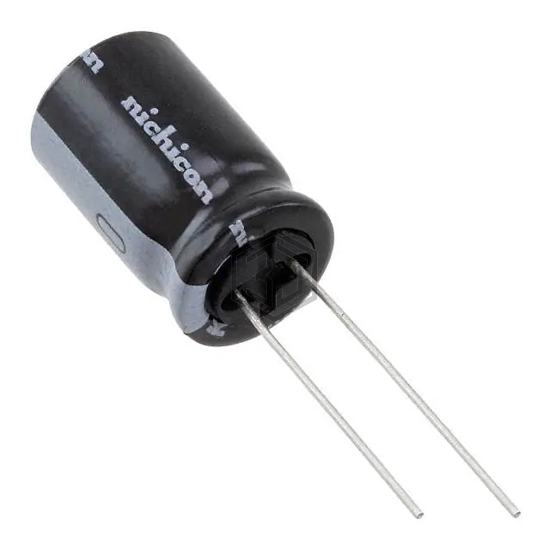

UKL1A102MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,929
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 810 mA @ 120 Hz |
| Ripple Current @ High Frequency | 931.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKL1A102MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KZE10VB102M10X16LL | United Chemi-Con | CAP ALUM 1000UF 20% 10V RADIAL | 88% | View |
| UVR1C102MPA | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 85% | View |
| LKG1E102MESACK | Nichicon | CAP ALUM 1000UF 20% 25V SNAP | 66% | View |
| MAL214096103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 65% | View |
| MAL214668102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 63V RADIAL | 59% | View |
| RXK102M1EBK-1030S | SURGE | CAP ALUM 1000UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UKL1A102MHD1TO and get a quote within 24 hours.
