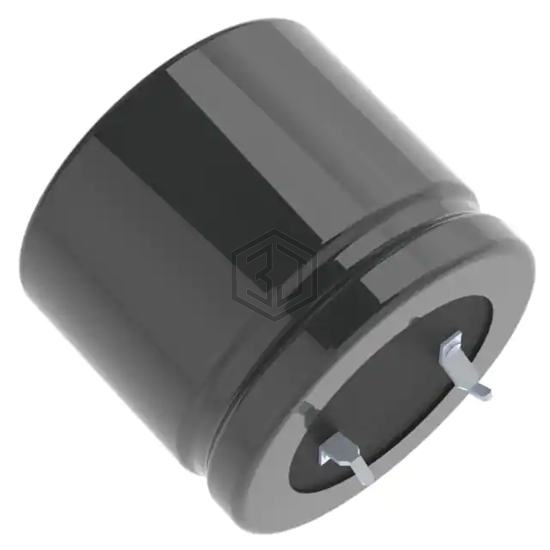

CAP ALUM 1000UF 20% 25V SNAP
LKG1E102MESACK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 171
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
Submit your RFQ for LKG1E102MESACK and get a quote within 24 hours.
