CAP ALUM 10000UF 20% 16V RADIAL

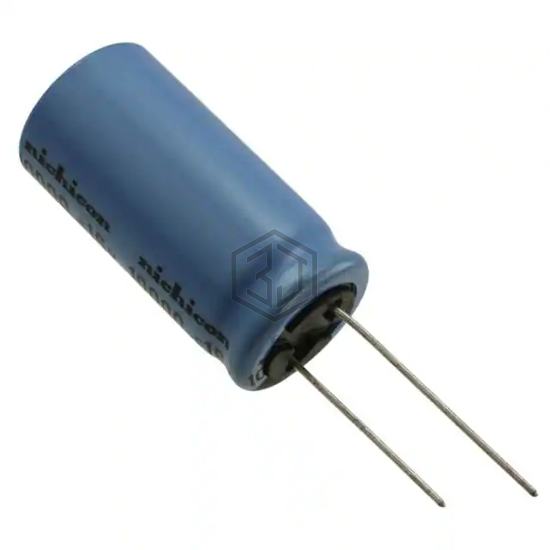

UKA1C103MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,969
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.06 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.369 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKA1C103MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECA-1CHG103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 16V RADIAL | 100% | View |
| MALREKB05KL510D00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V RADIAL | 95% | View |
| MALREKB00KL510D00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V RADIAL | 95% | View |
| UPS1A103MHD | Nichicon | CAP ALUM 10000UF 20% 10V RADIAL | 79% | View |
| EKMQ6R3ELL103ML25S | United Chemi-Con | CAP ALUM 10000UF 20% 6.3V RADIAL | 67% | View |
| URZ0J103MHD1TN | Nichicon | CAP ALUM 10000UF 20% 6.3V RADIAL | 62% | View |
Submit your RFQ for UKA1C103MHD and get a quote within 24 hours.
