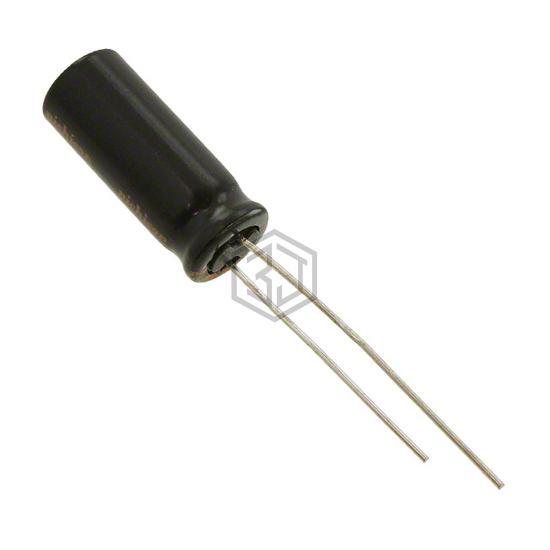

CAP ALUM 1000UF 20% 16V RADIAL
UHZ1C102MPM6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,059
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.88 A @ 100 kHz |
| Impedance | 9 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHZ1C102MPM6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EET-HC2D102KA | Panasonic Electronic Components | CAP ALUM 1000UF 20% 200V SNAP | 68% | View |
| UHV1V102MHD | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 67% | View |
| EKMH251VSN102MA40S | United Chemi-Con | CAP ALUM 1000UF 20% 250V SNAP | 66% | View |
| EKMH251VSN102MA40W | United Chemi-Con | CAP ALUM 1000UF 20% 250V SNAP | 66% | View |
| LGX2E102MELC35 | Nichicon | CAP ALUM 1000UF 20% 250V SNAP | 64% | View |
| 50YXH1000MEFCGC18X20 | Rubycon | CAP ALUM 1000UF 20% 50V RADIAL | 55% | View |
