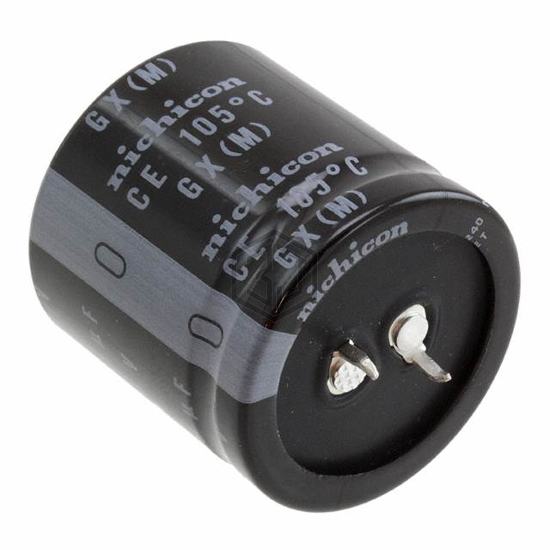

CAP ALUM 1000UF 20% 250V SNAP
LGX2E102MELC35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 6,570
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.57 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508F2108M60 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 250V SNAP | 98% | View |
| EKMH251VSN102MA40S | United Chemi-Con | CAP ALUM 1000UF 20% 250V SNAP | 98% | View |
| EKMH251VSN102MA40W | United Chemi-Con | CAP ALUM 1000UF 20% 250V SNAP | 98% | View |
| LGN2E102MELB40 | Nichicon | CAP ALUM 1000UF 20% 250V SNAP | 96% | View |
| B43504C2108M62 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 250V SNAP | 95% | View |
| B43508G2108M | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 250V SNAP | 91% | View |
Submit your RFQ for LGX2E102MELC35 and get a quote within 24 hours.
