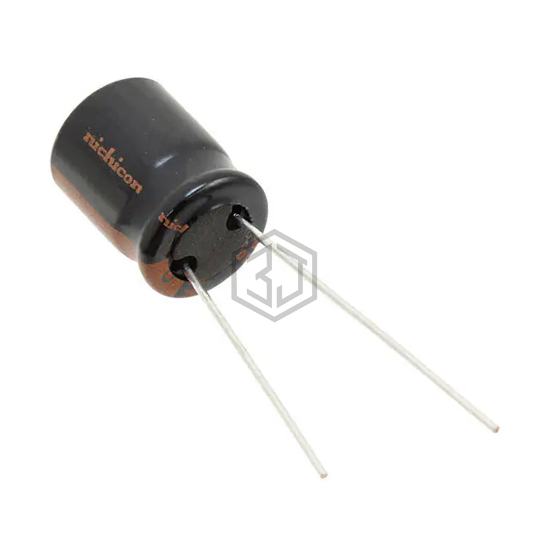

CAP ALUM 1000UF 20% 10V RADIAL
UHZ1A102MPM is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,283
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.28 A @ 100 kHz |
| Impedance | 12 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHZ1A102MPM is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V RADIAL | 62% | View |
| LGU2D102MELC | Nichicon | CAP ALUM 1000UF 20% 200V SNAP | 58% | View |
| EKMM201VSN102MQ50S | United Chemi-Con | CAP ALUM 1000UF 20% 200V SNAP | 58% | View |
| 301A102M050HL2 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 50V RADIAL | 56% | View |
| B43504E2108M62 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 56% | View |
| 108LMX200M2DF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 200V SNAP | 54% | View |
