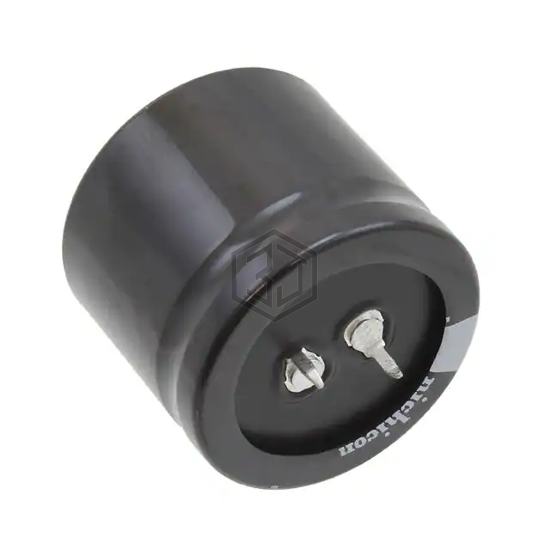

CAP ALUM 1000UF 20% 200V SNAP
LGU2D102MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,273
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504E2108M62 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 99% | View |
| ESY108M063AN1AA | KEMET | CAP ALUM 1000UF 20% 63V RADIAL | 69% | View |
| UPM1J102MHD6 | Nichicon | CAP ALUM 1000UF 20% 63V RADIAL | 65% | View |
| EEU-FR1E102 | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V RADIAL | 60% | View |
| 301A102M050HL2 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 50V RADIAL | 56% | View |
| 16YXG1000MEFC10X16 | Rubycon | CAP ALUM 1000UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for LGU2D102MELC and get a quote within 24 hours.
