CAP ALUM 1800UF 20% 50V RADIAL

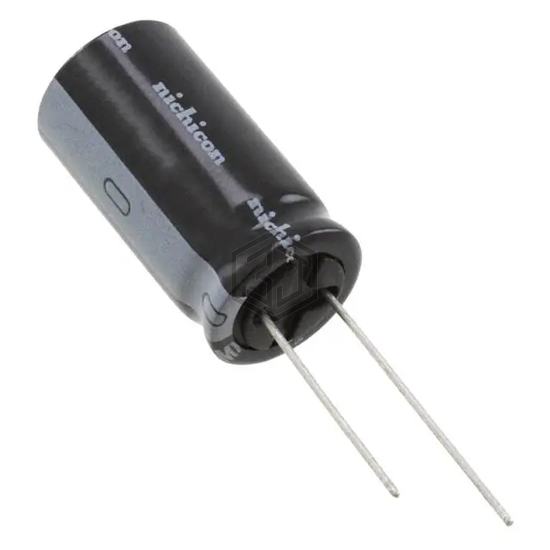

UHW1H182MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,991
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.058 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.43 A @ 100 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHW1H182MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50YXH1800MEFC18X31.5 | Rubycon | CAP ALUM 1800UF 20% 50V RADIAL | 96% | View |
| 63ZLH1800MEFC18X35.5 | Rubycon | CAP ALUM 1800UF 20% 63V RADIAL | 92% | View |
| 35YXH1800MEFC12.5X40 | Rubycon | CAP ALUM 1800UF 20% 35V RADIAL | 88% | View |
| KY35VB182M18X20LL | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 79% | View |
| LGU2A182MELB | Nichicon | CAP ALUM 1800UF 20% 100V SNAP | 70% | View |
| 381LX182M200A452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 200V SNAP | 70% | View |
