CAP ALUM 68UF 20% 35V RADIAL

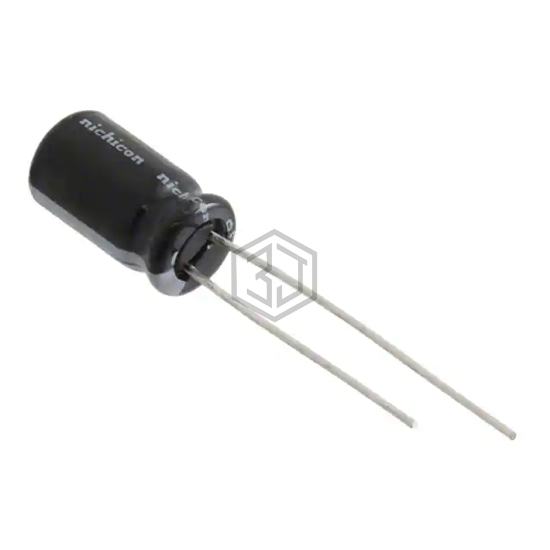

UHV1V680MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,897
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1V680MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VHT68M25 | NTE Electronics, Inc | CAP ALUM 68UF 20% 25V RADIAL | 78% | View |
| 30D686M025CB5A | Vishay Sprague | CAP ALUM 68UF 20% 25V AXIAL | 78% | View |
| 672D686H060DM5D | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 65% | View |
| UAS2D680MHD1TO | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 62% | View |
| MAL211990505E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 63V AXIAL | 56% | View |
| ELXV101ETD680MK15S | United Chemi-Con | CAP ALUM 68UF 20% 100V RADIAL | 56% | View |
