CAP ALUM 68UF 20% 200V RADIAL

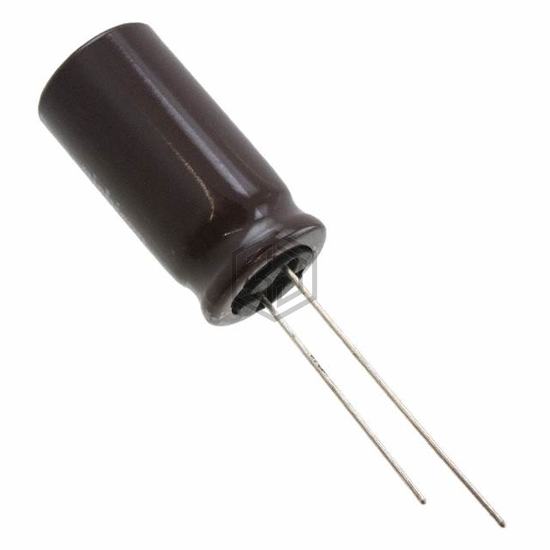

UAS2D680MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,657
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 320 mA @ 120 Hz |
| Ripple Current @ High Frequency | 512 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200WXA68MEFCGC16X20 | Rubycon | CAP ALUM 68UF 20% 200V RADIAL | 97% | View |
| UPM1H680MPD | Nichicon | CAP ALUM 68UF 20% 50V RADIAL | 69% | View |
| UKL1V680KPDANA | Nichicon | CAP ALUM 68UF 10% 35V RADIAL | 68% | View |
| VHT68M25 | NTE Electronics, Inc | CAP ALUM 68UF 20% 25V RADIAL | 56% | View |
| 672D686H060DM5D | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 56% | View |
| 420TXW68MEFR16X30 | Rubycon | CAP ALUM 68UF 20% 420V RADIAL | 55% | View |
