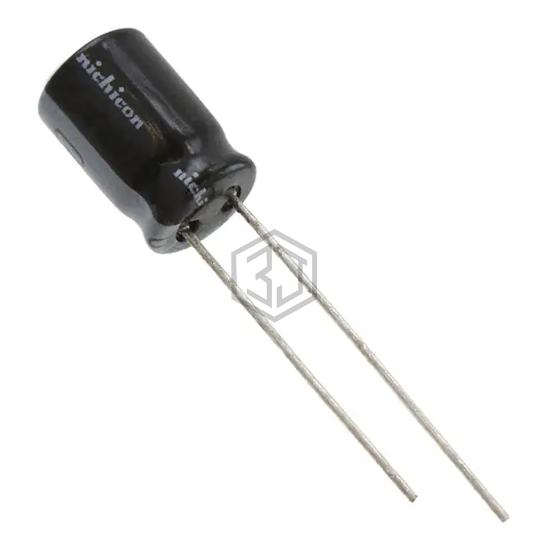

CAP ALUM 150UF 20% 35V RADIAL
UHV1V151MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,337
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 328 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 59 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1V151MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35YXG150MEFC8X11.5 | Rubycon | CAP ALUM 150UF 20% 35V RADIAL | 87% | View |
| ELXZ350ELL151MH12D | United Chemi-Con | CAP ALUM 150UF 20% 35V RADIAL | 78% | View |
| 50ZLH150MEFC10X12.5 | Rubycon | CAP ALUM 150UF 20% 50V RADIAL | 77% | View |
| EKY-800ETD151MJ25S | United Chemi-Con | CAP ALUM 150UF 20% 80V RADIAL | 71% | View |
| EEU-FR1J151 | Panasonic Electronic Components | CAP ALUM 150UF 20% 63V RADIAL | 54% | View |
| MAL211828151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 63V AXIAL | 52% | View |
Submit your RFQ for UHV1V151MPD1TD and get a quote within 24 hours.
