CAP ALUM 150UF 20% 80V RADIAL

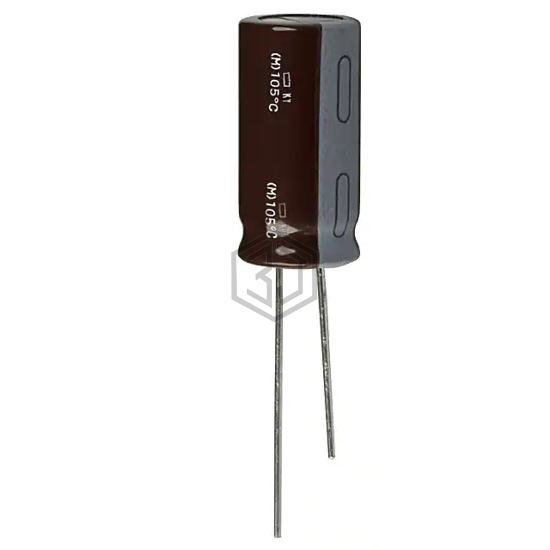

EKY-800ETD151MJ25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 150UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 6,928
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | 69 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RZW151M1HBK-1012S | Surge | CAP ALUM 50V POLAR | 73% | View |
| EEU-FR1J151 | Panasonic Electronic Components | CAP ALUM 150UF 20% 63V RADIAL | 70% | View |
| 25ZT150MT78X11.5 | Rubycon | CAP ALUM 150UF 20% 25V RADIAL | 68% | View |
| MAL211828151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 63V AXIAL | 66% | View |
| MAL211949151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 100V AXIAL | 65% | View |
| 35YXG150MEFC8X11.5 | Rubycon | CAP ALUM 150UF 20% 35V RADIAL | 63% | View |
