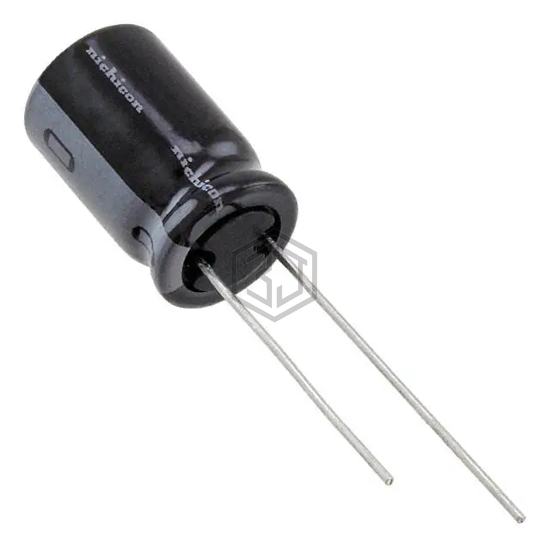

CAP ALUM 470UF 20% 25V RADIAL
UHV1E471MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,600
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 680 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.36 A @ 100 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1E471MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 30D477M025DF2A | Vishay Sprague | CAP ALUM 470UF 20% 25V AXIAL | 83% | View |
| EEU-FM1E471LBJ | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 81% | View |
| EKMQ500EMC471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 77% | View |
| ESX477M025AH4EA | KEMET | CAP ALUM RAD 105C | 74% | View |
| EKZE100ETC471MHB5D | United Chemi-Con | CAP ALUM 470UF 20% 10V RADIAL | 51% | View |
| LGR2E471MELB35 | Nichicon | CAP ALUM 470UF 20% 250V SNAP | 51% | View |
Submit your RFQ for UHV1E471MPD1TD and get a quote within 24 hours.
