CAP ALUM 470UF 20% 250V SNAP

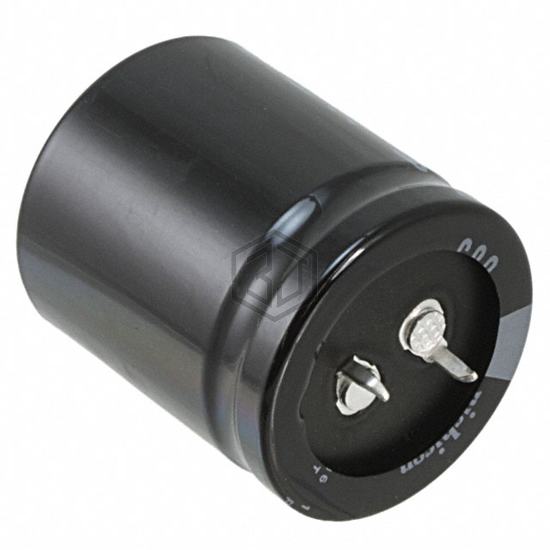

LGR2E471MELB35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 2,234
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D477F020EK4D | Vishay Sprague | CAP ALUM 470UF 20V RADIAL | 78% | View |
| UPW1J471MHH3 | Nichicon | CAP ALUM 470UF 20% 63V RADIAL | 74% | View |
| B41695A8477Q7 | EPCOS - TDK Electronics | CAP ALUM 470UF 63V AXIAL | 69% | View |
| EEU-FM1E471LBJ | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 68% | View |
| 80ZLJ470MGC18X20 | Rubycon | CAP ALUM 470UF 20% 80V RADIAL | 68% | View |
| 511D477M010CD4D | Vishay Sprague | CAP ALUM 470UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for LGR2E471MELB35 and get a quote within 24 hours.
