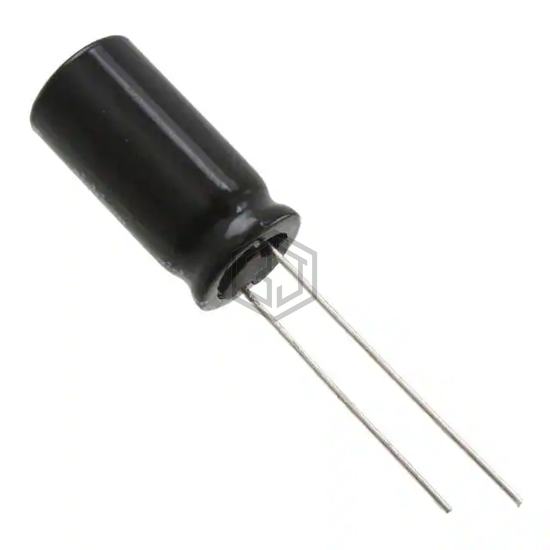

CAP ALUM 1500UF 20% 16V RADIAL
UHV1C152MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,812
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.296 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.16 A @ 100 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1C152MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXG1500MEFCG412.5X25 | Rubycon | CAP ALUM 1500UF 20% 25V RADIAL | 83% | View |
| EKZN250ELL152MK20S | United Chemi-Con | CAP ALUM 1500UF 20% 25V RADIAL | 77% | View |
| EKMH101VNN152MR30S | United Chemi-Con | CAP ALUM 1500UF 20% 100V SNAP | 67% | View |
| EKYB500ELL152MLN3S | United Chemi-Con | CAP ALUM 1500UF 20% 50V RADIAL | 66% | View |
| SLP152M100C5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 100V SNAP | 65% | View |
| UPA1V152MHD | Nichicon | CAP ALUM 1500UF 20% 35V RADIAL | 64% | View |
